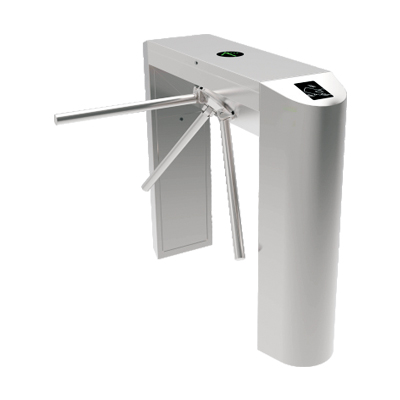

bridge-type tripod jy105

Specifications

- Passage width: ≤550mm
- Throughput rate: 35 per minute
- Power supply: 100 ~ 240V(ac)
- Operational voltage: 24V(dc)
- Max. power consumption: 30w
- Frequency: 50 ~ 60Hz
- Protection level: ≥44ip
- Working temperature: -25 ~ 70°C
- Electro-magnetic drive: DC
- Dimension excluding bars: 1200Wx280Tx980Hmm
- Net weight including bars: 52kg;
